What is Ultrasonic Testing?
Ultrasonic Testing (UT) is a non-destructive testing (NDT) technique that uses high frequency sound waves to detect faults, weaknesses, and irregularities in materials and electrical systems. This method is highly effective for identifying hidden issues in switchgear, transformers, and power distribution systems—without the need for costly disassembly or shutdowns.
Why Is It Important?
Early Fault Detection
Identifies electrical defects such as loose connections, insulation breakdowns, and partial discharges before they lead to failures.
Non-Destructive & Cost-Effective
Prevents costly downtime by detecting issues without damaging equipment.
Regulatory Compliance
Helps meet safety standards such as NFPA 70E, and OSHA 1910, ensuring electrical systems operate within compliance.
Enhanced Safety & Reliability
Reduces the risk of electrical fires, arc faults, and unexpected system failures.
How Does It Work?

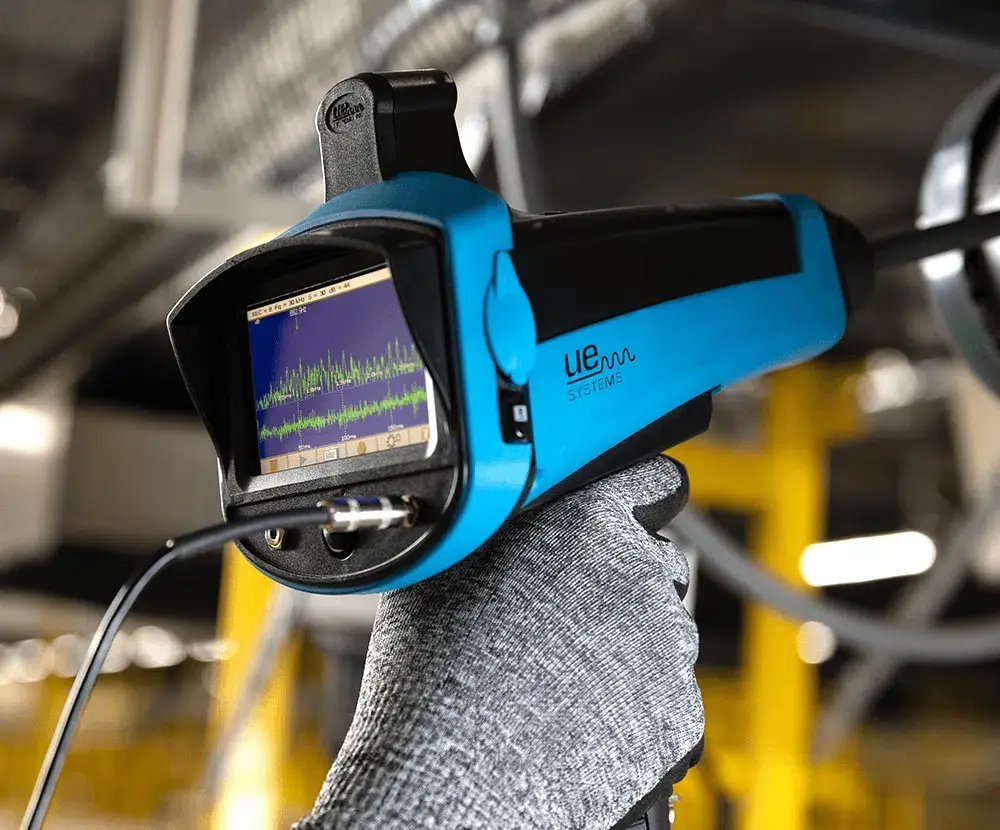

Ultrasonic Testing works by sending high-frequency sound waves into a material or electrical component. These waves travel through the object and bounce back upon encountering cracks, gaps, or other defects. A transducer detects these reflections, and the data is analyzed to pinpoint issues before they escalate.
Ultrasonic Testing vs. Other Inspection Methods
For comprehensive electrical testing, Ultrasonic Testing and Other Predictive Inspection Methods should be used together to provide a complete assessment of your electrical system’s health.
| Feature | Ultrasonic Testing | Infrared Thermography | Voltage & Current Analysis | Visual Inspection |
|---|---|---|---|---|
| Primary Function | Detects sound emissions from electrical defects | Detects heat emissions from electrical faults | Monitors electrical loads and power quality | Detects physical defects, corrosion, insulation wear, Code violations |
| Best for Detecting | Arcing, tracking, loose connections, and insulation breakdowns | Overheating components and load imbalances | Power fluctuations, harmonics, load imbalances | Visible faults like damaged wiring, and grounding issues, and Compliance Issues. |
| Detection Range | Can detect hidden defects inside switchgear, cables, and panels | Primarily detects surface-level temperature variations | Measures voltage, current flow, and system efficiency | Identifies surface-level issues that are visible to the naked eye |
| Environmental Impact | Works effectively even in noisy or enclosed spaces | Works effectively even in no-contact scenarios | Requires live monitoring for accurate analysis | Works in all conditions but limited to visible issues |
| Equipment Required | Ultrasonic detection tools | Thermal imaging cameras | Power meters, oscilloscopes | No special equipment required |
| Limitations | Cannot detect overheating components | Cannot detect electrical discharge faults | Cannot detect physical defects or insulation wear | Cannot detect hidden internal faults or temperature issues |
| Industry Use Cases | Ideal for early fault detection before heat buildup occurs | Best for identifying already existing temperature issues | Best for identifying harmonics from non-linear loads | Ideal for routine safety checks, and compliance audits |
Applications of Ultrasonic Testing
in Electrical Systems
Ultrasonic Testing plays a vital role in electrical system maintenance, helping facilities detect and prevent failures before they happen.
Detection of Loose Electrical Connections
Prevents overheating and equipment failure.
Insulation Integrity Testing
Identifies breakdown in insulation that could lead to short circuits.
Partial Discharge & Arc Fault Detection
Detects early-stage corona discharge, tracking, and arcing that can cause fires.
Testing Cables & Switchgear
Pinpoints faults within power cables, transformers, and panelboards.
Leak Detection in Electrical Enclosures
airtight seals in substations and high-voltage cabinets.
Compliance & Safety Standards
Ensuring compliance with NFPA 70E requires adherence to NFPA 70B, which outlines best practices for electrical maintenance.
Under NFPA 70B, Ultrasonic Testing is classified as an online (energized) Enhanced Test (Category 1A), making it a critical tool for assessing electrical systems while they remain operational.
Integrating Ultrasonic Testing into your electrical maintenance plan is essential for achieving and maintaining compliance with both NFPA 70E and NFPA 70B, helping organizations enhance workplace safety, reduce electrical hazards, and improve system reliability.
FAQs
How often should Ultrasonic Testing be performed?
The frequency of testing depends on the type of electrical system and industry regulations. For critical power infrastructure, annual inspections are recommended. In high-risk environments, quarterly testing may be necessary.
What types of electrical issues can Ultrasonic Testing detect?
Ultrasonic Testing is highly effective in identifying loose connections, insulation breakdowns, partial discharges, arcing, and internal defects in cables and switchgear.
Does Ultrasonic Testing require shutting down equipment?
No, Ultrasonic Testing is a non-invasive and non-contact method that can be performed while systems are operational, minimizing downtime.
Is Ultrasonic Testing better than Infrared Testing?
Ultrasonic Testing and Infrared Testing serve different purposes. UT is best for detecting electrical discharge, loose connections, and insulation defects, while IR detects overheating components and load imbalances. For comprehensive maintenance, both should be used together.
