Voltage and current analysis is the process of evaluating electrical circuits to measure and monitor the flow of electricity within a system. It helps identify irregularities, optimize performance, and ensure that electrical systems operate efficiently and safely.
Voltage and current analysis involves using specialized tools and techniques to measure electrical flow across circuits. The process typically includes:

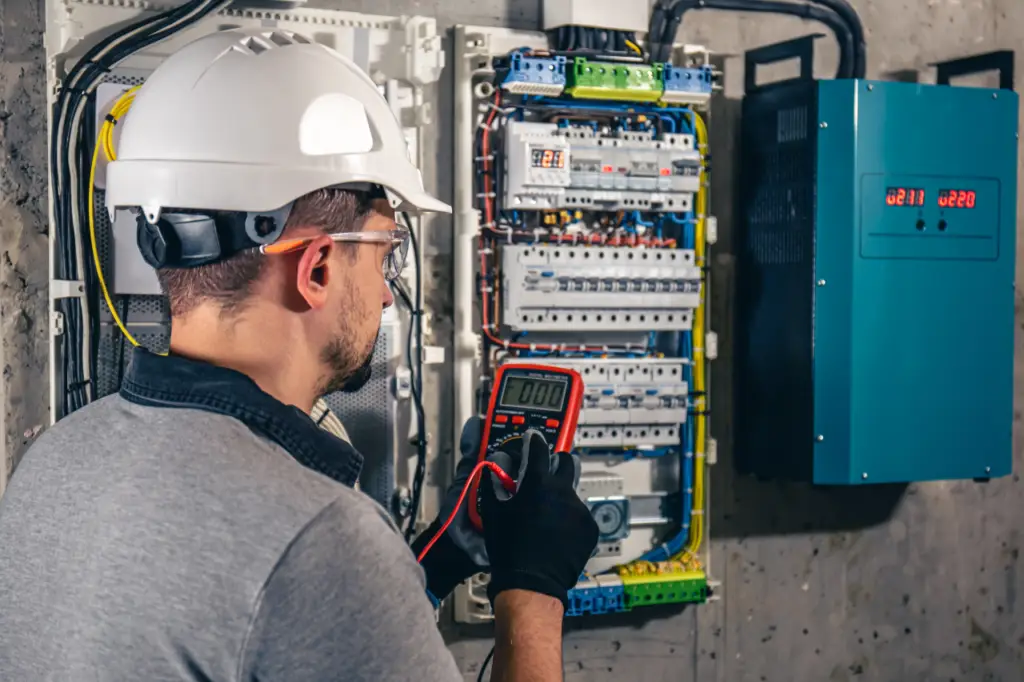

Technicians use meters, oscilloscopes, or power analyzers to measure real-time voltage and current.
Examining power consumption patterns to detect overloads or inefficiencies.
Evaluating electrical waveforms to identify distortions, harmonics, or fluctuations.
Locating faults such as short circuits, open circuits, and excessive voltage drops.
Based on findings, adjustments are made to improve power quality and system reliability.
When voltage levels fall below required thresholds, causing inefficient operation of equipment.
Sudden spikes or dips in voltage that can damage sensitive electronics.
Excessive power consumption leading to overheating and equipment failure.
Electrical distortions affecting performance and efficiency.
Critical faults that can lead to fires or system breakdowns if left unchecked.
For comprehensive electrical testing, Voltage And Current Analysis and Other Predictive Inspection Methods should be used together to provide a complete assessment of your electrical system’s health.
| Feature | Voltage & Current Analysis | Infrared Thermography | Ultrasonic Testing | Visual Inspection |
|---|---|---|---|---|
| Primary Function | Monitors electrical loads and power quality | Detects heat emissions from electrical faults | Detects sound emissions from electrical defects | Detects physical defects, corrosion, insulation wear, Code violations |
| Best for Detecting | Power fluctuations, harmonics, load imbalances | Overheating components and load imbalances | Arcing, tracking, loose connections, and insulation breakdowns | Visible faults like damaged wiring, and grounding issues, and Compliance Issues. |
| Detection Range | Measures voltage, current flow, and system efficiency | Primarily detects surface-level temperature variations | Can detect hidden defects inside switchgear, cables, and panels | Identifies surface-level issues that are visible to the naked eye |
| Environmental Impact | Requires live monitoring for accurate analysis | Works effectively even in no-contact scenarios | Works effectively even in noisy or enclosed spaces | Works in all conditions but limited to visible issues |
| Equipment Required | Power meters, oscilloscopes | Thermal imaging cameras | Ultrasonic detection tools | No special equipment required |
| Limitations | Cannot detect physical defects or insulation wear | Cannot detect electrical discharge faults | Cannot detect overheating components | Cannot detect hidden internal faults or temperature issues |
| Industry Use Cases | Best for identifying harmonics from non-linear loads | Best for identifying already existing temperature issues | Ideal for early fault detection before heat buildup occurs | Ideal for routine safety checks, and compliance audits |
Identifies and mitigates power distortions such as harmonics and transients.
Determines voltage levels, power losses, and optimal load distribution.
Ensures proper voltage levels are maintained to prevent inefficiencies.
To ensure safe and efficient electrical operations, voltage and current analysis must comply with key industry standards:
Workplace electrical safety standards for arc flash protection.
Workplace safety requirements for handling electrical hazards.
Adhering to these standards helps prevent electrical accidents, ensures system reliability, and maintains compliance with industry regulations.
Voltage and current analysis helps detect inefficiencies, prevents equipment failures, and ensures compliance with safety regulations. It is crucial for maintaining a reliable and energy-efficient electrical system.
It depends on the system’s complexity and usage. Industrial and commercial facilities should conduct routine analysis at least once a year or whenever power issues arise.
Common tools include digital multimeters, power quality analyzers, oscilloscopes our team utilizes the Fluke 125B equipment.
Frequent power fluctuations, unexplained outages, overheating equipment, or high energy bills may indicate an issue that requires analysis.
Yes! Identifying inefficiencies and optimizing power distribution can help lower energy consumption and reduce operational costs.
